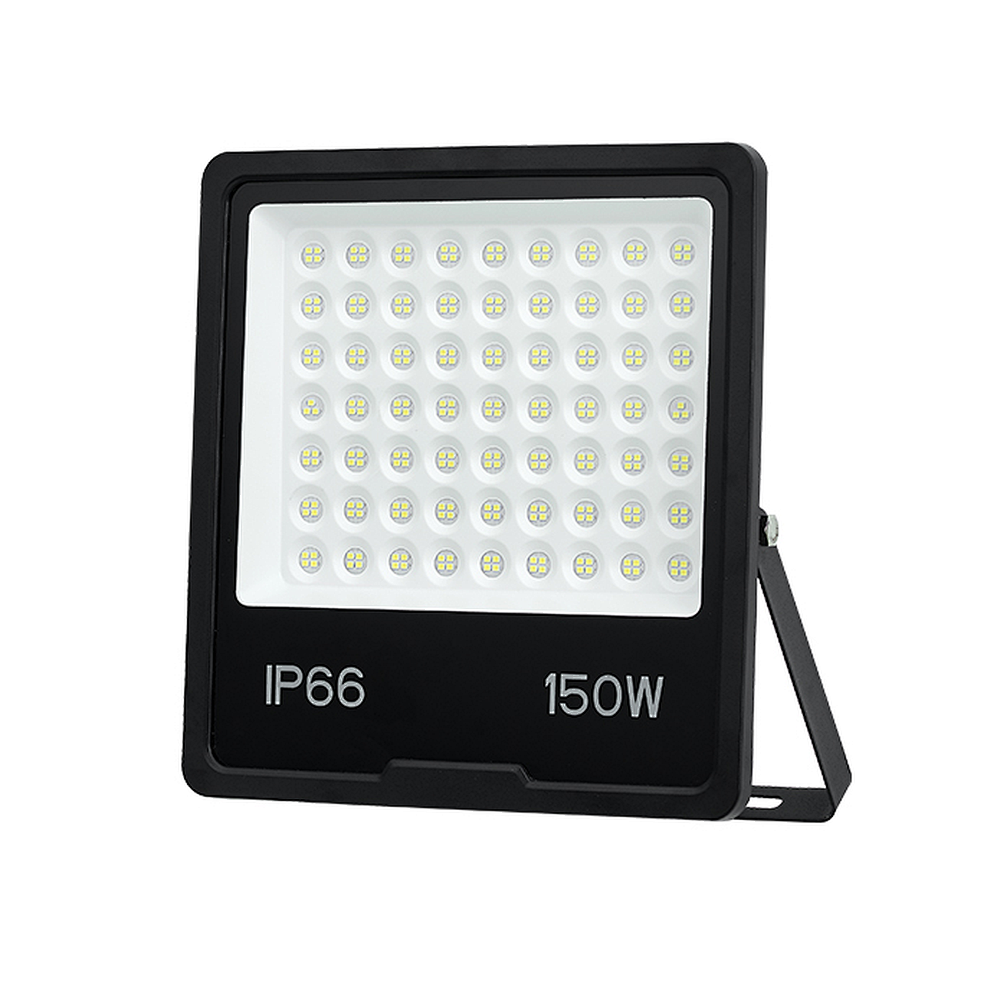

LED FLOOD LIGHT
YPHXF 30-300W
Quantity
| SPECIFICATION | YPHXF30 | YPHXF50 | YPHXF100 | YPHXF150 | YPHXF200 | YPHXF300w |
| blink flood light Wattage／瓦数 | 30w | 50w | 100w | 150w | 200w | 300w |
| blink flood light DIMENSION(MM)／产品尺寸 | 159*176*34 | 206*244*40 | 258*300*41 | 286*323*44 | 325*365*49 | 368*411*54 |
| blink flood light Materials／材质 | ALU＋GLASS | ALU＋GLASS | ALU＋GLASS | ALU＋GLASS | ALU＋GLASS | ALU＋GLASS |
| blink flood light Water Proof／防水等级 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| blink flood light Power／实际功率 | 90% | 90% | 90% | 90% | 90% | 90% |
| blink flood light POWER FACTOR／功率因数 | 0.5 | 0.9 | 0.9 | 0.9 | 0.9 | 0.5 |
| blink flood light outdoor security lights Driver／非隔离宽压 | Non－isloted | Non－isloted | Non－isloted | Non－isloted | Non－isloted | Non－isloted |
| outdoor security lights Voltage／电压 | AC100-265v | AC100-265v | AC100-265v | AC100-265v | AC100-265v | AC100-265v |
| outdoor security lights CRI／显指 | 80 | 80 | 80 | 80 | 80 | 80 |
| outdoor security lights EFFCIENCY(LM/W) | 90lm/w | 90lm/w | 90lm/w | 90lm/w | 90lm/w | 90lm/w |
| outdoor security lights EMC | ／ | ／ | ／ | ／ | ／ | ／ |
| Inductive economy flood light LED MODEL／灯珠型号 | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 |
| Inductive economy flood light LED quantity／灯珠数量 | 48 | 100 | 200 | 300 | 400 | 600 |
| Inductive economy flood light SURGER／浪涌 | 2KV | 3KV | 3KV | 3KV | 3KV | 3KV |
| Inductive economy flood light VOLTAGE RESISTANCE／耐压 | 1.5kv | 1.5kv | 1.5kv | 1.5kv | 1.5kv | 1.5kv |
| Inductive economy flood light BEAM ANGLE／发光角度 | 120 | 120 | 120 | 120 | 120 | 120 |
| Inductive economy flood light WORK TEM. | -20～50℃ | -20～50℃ | -20～50℃ | -20～50℃ | -20～50℃ | -20～50℃ |
| Inductive economy flood light outdoor security lights PCS/CTN／装箱数 | 20 | 20 | 10 | 10 | 5 | 5 |
| outdoor security lights CTN SIZE（CM）／外箱尺寸 | 37*34*18.9 | 48*43.5*24.3 | 48*27.5*30 | 53*29.5*32.5 | 33.6*29.5*36.5 | 38*32*41 |
