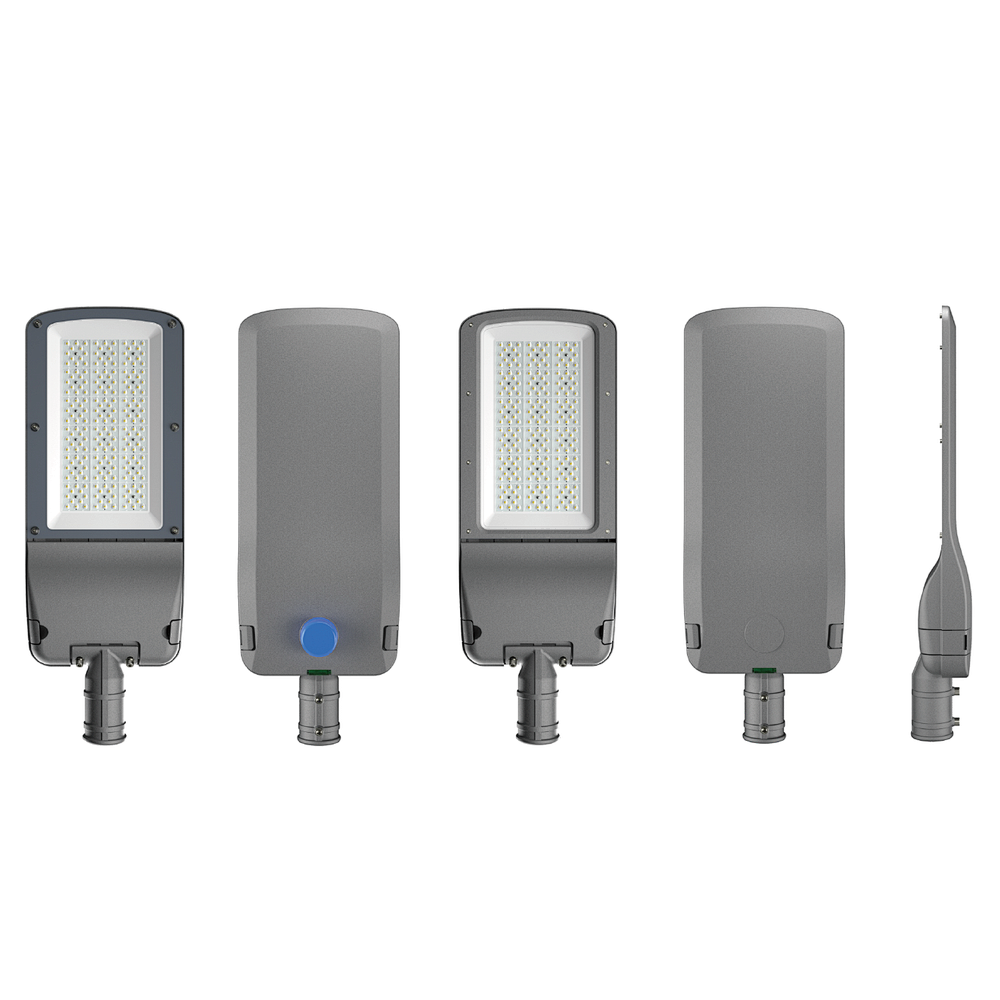

engineering Street lighting in plant area
YPTE50-200W
The street light product are mainly exported to Eastern Europe, the Middle East, South America, Southeast Asia and other regions.
Quantity
| SPECIFICATION | YPTE50 | YPTE100 | YPTE150 | YPTE200 |
| engineering Street lighting in plant area Wattage／瓦数 | 50w | 100w | 150w | 200w |
| engineering Street lighting in plant area Dimension(mm)／产品尺寸 | 53.5*21*11 | 60.5*26.5*11 | 71*26.5*11 | 76*28*11 |
| engineering Street lighting in plant area Material／材质 | ALU | ALU | ALU | ALU |
| engineering Street lighting in plant area Water Proof／防水等级 | IP65 | IP65 | IP65 | IP65 |
| engineering Street lighting in plant area Power／功率 | 90% | 90% | 90% | 90% |
| engineering Street lighting in plant area Power factor／功率因数 | 0.9 | 0.9 | 0.9 | 0.9 |
| engineering street light upDriver／驱动 | Philips / Isolated | Philips / Isolated | Philips / Isolated | Philips / Isolated |
| engineering street light upVoltage／电压 | AC100-265v | AC100-265v | AC100-265v | AC100-265v |
| engineering street light upCRI／显指 | 80 | 80 | 80 | 80 |
| engineering street light upLuminous efficiency(lm/w) | 140lm/w | 140lm/w | 140lm/w | 140lm/w |
| engineering street light upLED model／灯珠型号 | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 |
| engineering street light upLED quantity／灯珠数量 | 64pcs | 110pcs | 180pcs | 215pcs |
| engineering streetlightSurge／浪涌 | 6KV | 6KV | 6KV | 6KV |
| engineering streetlightVoltage resistance／耐压 | 1.5.kv | 1.5.kv | 1.5.kv | 1.5.kv |
| engineering streetlightBeam angle／发光角度 | 70-140 | 70-140 | 70-140 | 70-140 |
| engineering streetlightWork tem. | -20～50℃ | -20～50℃ | -20～50℃ | -20～50℃ |
| engineering streetlightAperture size／孔径 | 60 | 60 | 60 | 60 |
| engineering streetlightPcs/CTN／装箱数 | 1 | 1 | 1 | 1 |
| engineering streetlightCTN Size（cm）／外箱尺寸 | 57*27*15.5 | 64*32*15.5 | 74*32*15.5 | 79*32*15.5 |
