YP-XC 10W-.200W

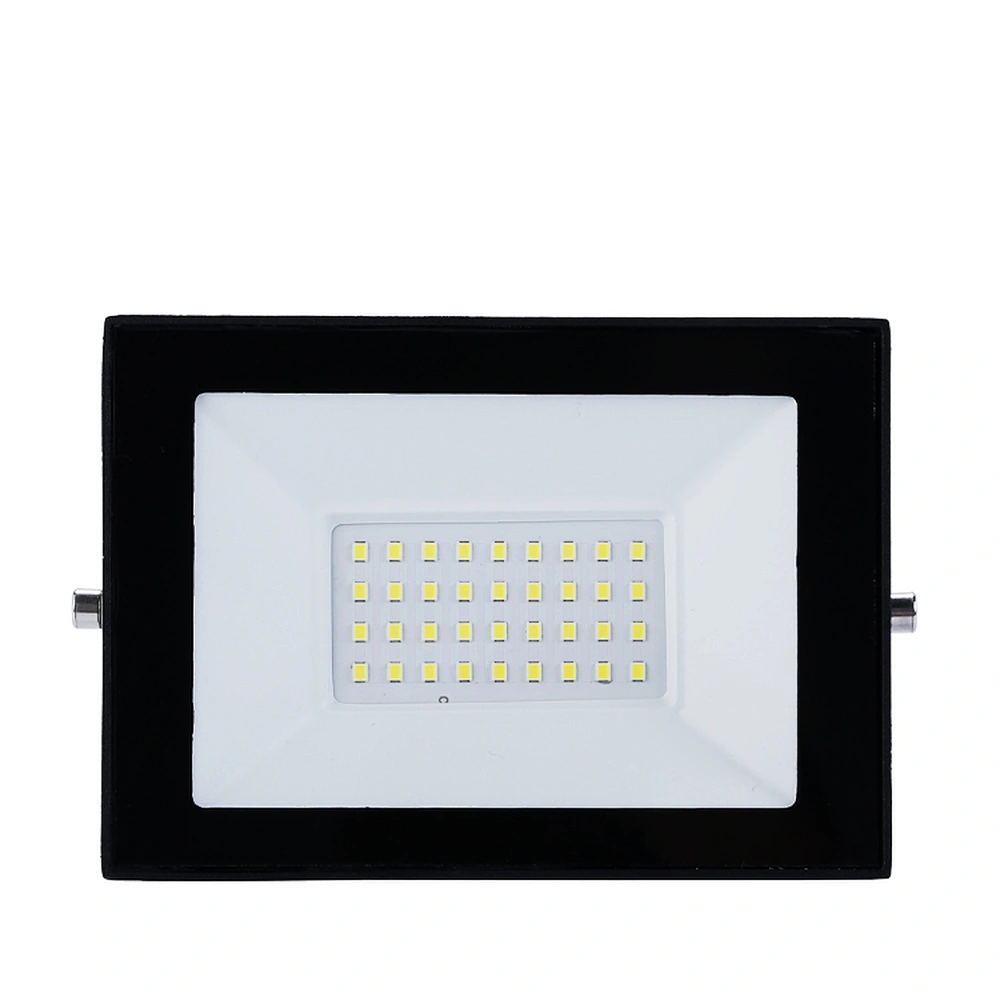

The slim flood light product are mainly exported to Eastern Europe, the Middle East, South America, Southeast Asia and other regions.
Quantity
SPECIFICATIONYPXF10YPXF20YPXF30YPXF50YPFX70YPXF100YPXF150YPXF200
project lamp Wattage／瓦数10w20w30w50w70w100w150w200w
project lamp DIMENSION(MM)／产品尺寸90*65*26110*75*30140*100*30170*130*30225*155*30286*195*30320*230*35355*255*40
project lighting   Materials／材质ALU+GLASSALU+GLASSALU+GLASSALU+GLASSALU+GLASSALU+GLASSALU+GLASSALU+GLASS
project light   Water Proof／防水等级IP65IP65IP65IP65IP65IP65IP65IP65
project light   Power／实际功率95%95%95%90%90%90%90%85%
project light   POWER FACTOR／功率因数0.90.90.90.90.90.90.90.9
project lampDriver／线性LinerLinerLinerLinerLinerLinerLinerLiner
project lampVoltage／电压AC220-240vAC220-240vAC220-240vAC220-240vAC220-240vAC220-240vAC220-240vAC220-240v
project lampCRI／显指8080808080808080
project lampEFFCIENCY(LM/W)80lm/w80lm/w80lm/w80lm/w80lm/w80lm/w80lm/w80lm/w
project lampEMC／／／／／／／／
project lampLED MODEL／灯珠型号SMD 2835SMD 2835SMD 2835SMD 2835SMD 2835SMD 2835SMD 2835SMD 2835
project lightingLED quantity／灯珠数量12pcs24pcs48pcs72pcs108pcs144pcs180pcs216pcs
project lightingSURGE／浪涌2KV2KV2KV2KV2KV2KV2KV2KV
project lightingVOLTAGE RESISTANCE／耐压1.5kv1.5kv1.5kv1.5kv1.5kv1.5kv1.5kv1.5kv
project lightingBEAM ANGLE／发光角度120120120120120120120120
project lightingWORK TEM.-20～50℃-20～50℃-20～50℃-20～50℃-20～50℃-20～50℃-20～50℃-20～50℃
project lightingPCS/CTN／装箱数40402020101055
project lightingCTN SIZE（CM）／外箱尺寸35*25*2035*28*2435*33*13.538x35x1538*26.5*1835*33*2336*19*2629.5*20*39.5
