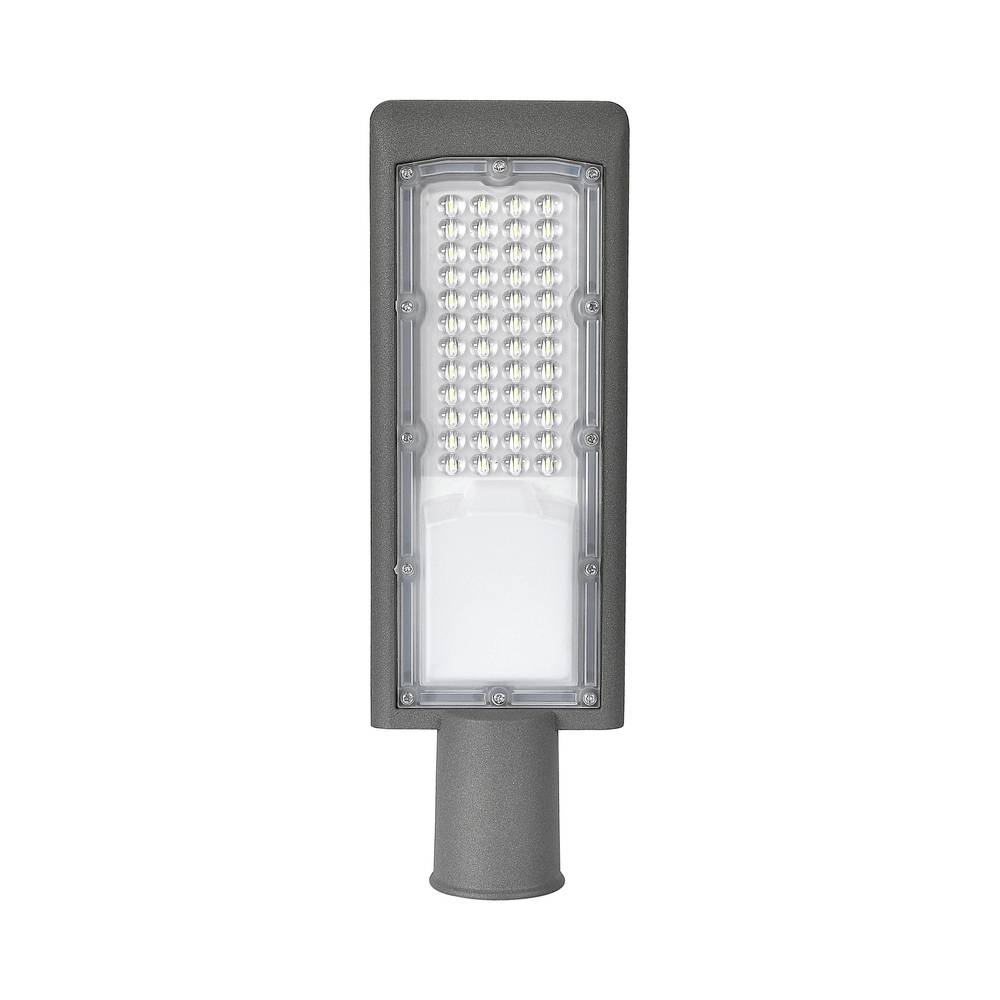

YP-K 50W,YP-K 100W,YP-K 150W,YP-K 200W,YP-K 300W
Zhongshan Yipu Lighting Technology Co., Ltd., founded in 2016, has been engaged in the manufacture of LED outdoor lighting, such as the led flood light, street light , high bay and also the solar light product etc.... We are experienced R&D team have excellent skills in structural, electronic and optics design. We have rich experience in helping you to develop your own OEM & ODM project. At present, our products are mainly exported to Eastern Europe, the Middle East, South America, Southeast Asia and other regions.
Quantity
| SPECIFICATION | YPK50 | YPK100 | YPK150 | YPK200 | YPK300 |
| Wattage／瓦数 | 50w | 100w | 150w | 200w | 300w |
| street light DIMENSION(mm)／产品尺寸 | 345*112.5*60 | 402*126.5*60 | 462*141.5*66 | 532*171.5*75 | 606*193.5*85 |
| street light Materials／材质 | ALU | ALU | ALU | ALU | ALU |
| street light Water Proof／防水等级 | IP65 | IP65 | IP65 | IP65 | IP65 |
| street light Power／实际功率 | 75% | 75% | 75% | 75% | 75% |
| street light POWER FACTOR／功率因数 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| street lampDriver／Dob | Dob | Dob | Dob | Dob | Dob |
| street lampVoltage／电压 | AC100-265v | AC100-265v | AC100-265v | AC100-265v | AC100-265v |
| street lampCRI／显指 | 70 | 70 | 70 | 70 | 70 |
| street lampEFFCIENCY(LM/W) | 90lm/w | 90lm/w | 90lm/w | 90lm/w | 90lm/w |
| street lampEMC | ／ | ／ | ／ | ／ | ／ |
| street lampLED MODEL／灯珠型号 | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 |
| street lightingLED quantity／灯珠数量 | 50pcs | 100pcs | 150pcs | 200pcs | 300pcs |
| street lightingSURGER／浪涌 | 2.5KV | 2.5KV | 2.5KV | 2.5KV | 2.5KV |
| street lightingVOLTAGE RESISTANCE／耐压 | 1.5kv | 1.5kv | 1.5kv | 1.5kv | 1.5kv |
| street lightingBEAM ANGLE／发光角度 | 70-140 | 70-140 | 70-140 | 70-140 | 70-140 |
| street lightingWORK TEM. | -20～50℃ | -20～50℃ | -20～50℃ | -20～50℃ | -20～50℃ |
| street lightingAperture size／孔径 | 40 | 50 | 50 | 60 | 60 |
| street lightingPCS/CTN／装箱数 | 30 | 30 | 20 | 20 | 10 |
