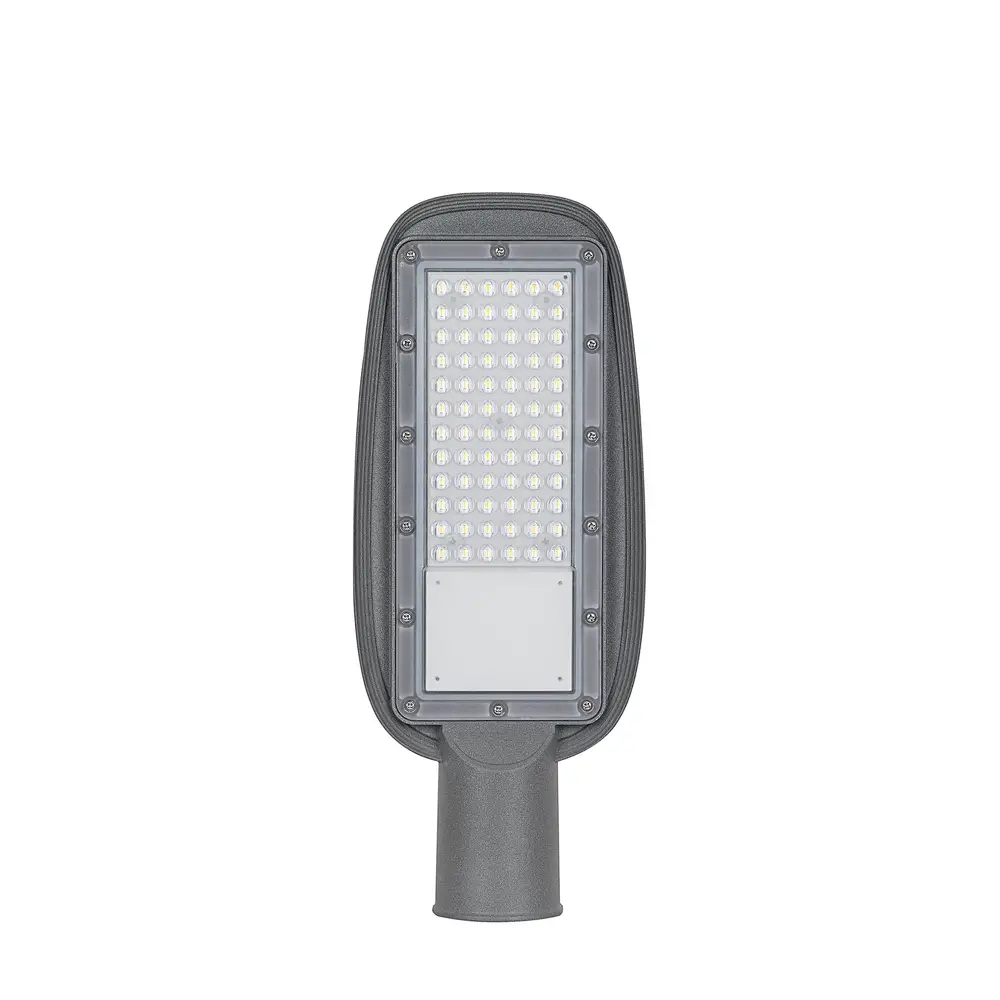

streetlamp street lamp control system street light head
YP-Z 50w,YP-Z 100w,YP-Z 150w,YP-Z 200w,
The street light product are mainly exported to Eastern Europe, the Middle East, South America, Southeast Asia and other regions.
Quantity
Product characteristics:
Good quality of the powder coating, not easy to scratch.
Good Structural water proof , 100% pass the water testing.
Good appearance, careful attention to the details.
Good quality of the powder coating, not easy to scratch.
Good Structural water proof , 100% pass the water testing.
Good appearance, careful attention to the details.
| SPECIFICATION | YPSZL50 | YPSZL100 | YPSZL150 | YPSZL200 |
street lamp Wattage | 50w | 100w | 150w | 200w |
street lamp DIMENSION(MM) | 390*160*70 | 465*190*72 | 525*220*72 | 600*245*72 |
street lamp Materials | ALU | ALU | ALU | ALU |
street lamp Water Proof | IP65 | IP65 | IP65 | IP65 |
street lamp Power | 90% | 90% | 80% | 80% |
| street light head POWER FACTOR | 0.9 | 0.9 | 0.9 | 0.9 |
| street light headDriver | Liner | Liner | Liner | Liner |
| street light headVoltage | AC220-240v | AC220-240v | AC220-240v | AC220-240v |
| street light head CRI | 80 | 80 | 80 | 80 |
| street light head EFFCIENCY(LM/W) | 90lm/w | 90lm/w | 90lm/w | 90lm/w |
| street lamp control system EMC | ／ | ／ | ／ | ／ |
| street lamp control system LED MODEL | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 |
| street lamp control system LED quantity | 72pcs | 144pcs | 216pcs | 252pcs |
| street lamp control system SURGER | 2.5KV | 2.5KV | 2.5KV | 2.5KV |
| street lamp control system VOLTAGE RESISTANCE | 1.5kv | 1.5kv | 1.5kv | 1.5kv |
| street lamp control system BEAM ANGLE | 70-140 | 70-140 | 70-140 | 70-140 |
| street lamp control system WORK TEM. | -20～50℃ | -20～50℃ | -20～50℃ | -20～50℃ |
| Aperture size / | 60 | 60 | 60 | 60 |
| PCS/CTN | 10 | 10 | 5 | 5 |
| CTN SIZE（CM） | 41x39x35 | 48x37.5x40 | 54x37.5x23.5 | 61.5x37.5x26 |
