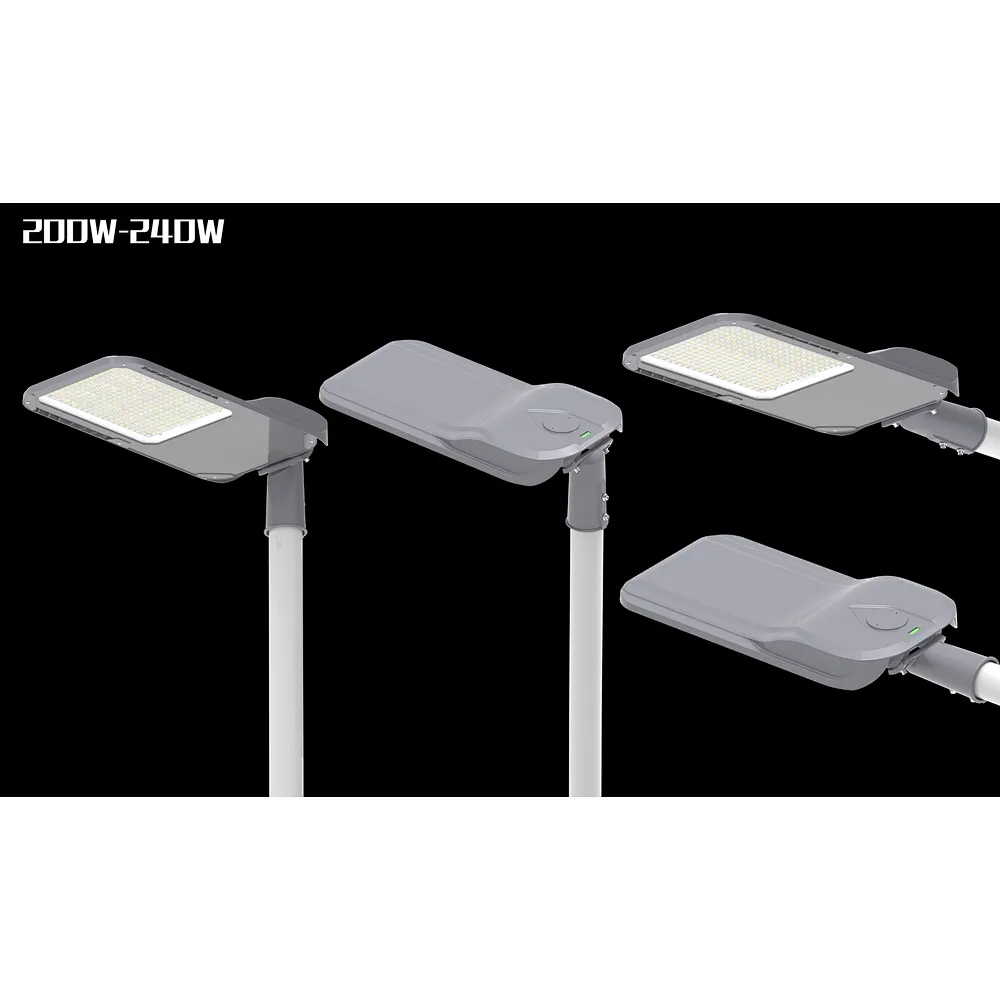

Street lighting in plant area streetlight street light up
YPBL50-200W
The street light product are mainly exported to Eastern Europe, the Middle East, South America, Southeast Asia and other regions.
Quantity
| SPECIFICATION | YPBL50 | YPBL100 | YPBL150 | YPBL200 |
| Street lighting in plant area Wattage／瓦数 | 50w | 100w | 150w | 200w |
| Street lighting in plant area Dimension(mm)／产品尺寸 | 22*51.5*8.5 | 22*56.5*8.5 | 24*63.5*8.5 | 29*66.5*8.5 |
| Street lighting in plant area Material／材质 | ALU | ALU | ALU | ALU |
| Street lighting in plant area Water Proof／防水等级 | IP65 | IP65 | IP65 | IP65 |
| Street lighting in plant area Power／功率 | 90% | 90% | 90% | 90% |
| Street lighting in plant area Power factor／功率因数 | 0.9 | 0.9 | 0.9 | 0.9 |
| street light upDriver／驱动 | philips / isolated | philips / isolated | philips / isolated | philips / isolated |
| street light upVoltage／电压 | AC100-265v | AC100-265v | AC100-265v | AC100-265v |
| street light upCRI／显指 | 80 | 80 | 80 | 80 |
| street light upLuminous efficiency(lm/w) | 130lm/w | 130lm/w | 130lm/w | 130lm/w |
| street light upLED model／灯珠型号 | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 |
| street light upLED quantity／灯珠数量 | 96pcs | 144pcs | 240pcs | 320pcs |
| streetlightSurge／浪涌 | 6KV | 6KV | 6KV | 6KV |
| streetlightVoltage resistance／耐压 | 1.5kv | 1.5kv | 1.5kv | 1.5kv |
| streetlightBeam angle／发光角度 | 70-140 | 70-140 | 70-140 | 70-140 |
| streetlightWork tem. | -20～50℃ | -20～50℃ | -20～50℃ | -20～50℃ |
| streetlightAperture size／孔径 | 50／60 | 50／60 | 50／60 | 50/60 |
| streetlightPcs/CTN／装箱数 | 1 | 1 | 1 | 1 |
